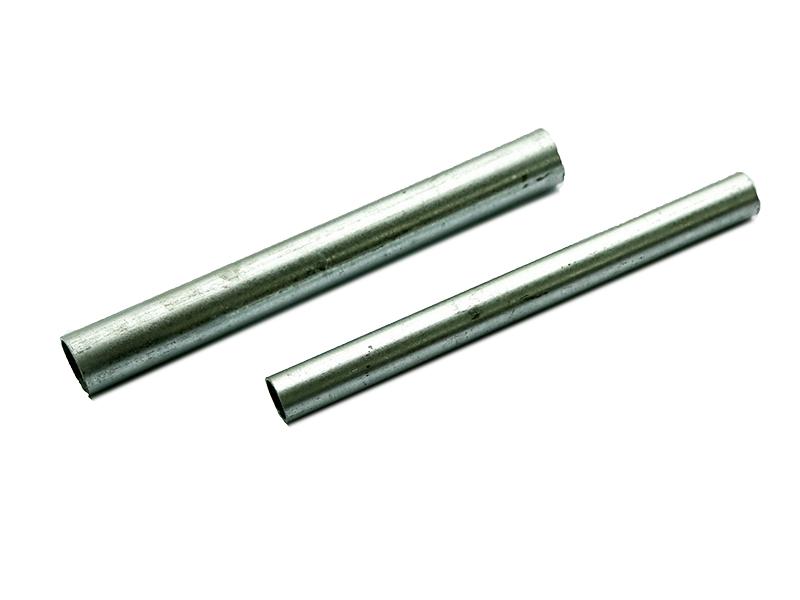

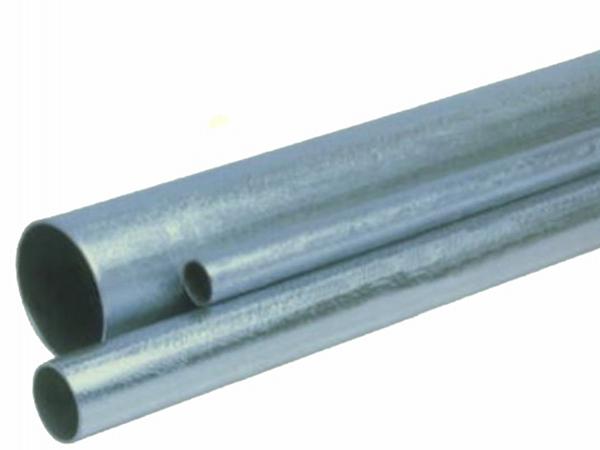

Electrical Metallic Tube (EMT) Conduit

ANAKO electrical metallic tube (EMT) conduit for wiring, can not only protect the wires within, but also satisfy your aesthetic requirements.

The outer part of our EMT conduit is galvanized, which delivers superior corrosion resistance. A highly effective anti-corrosion treatment is also conducted on the EMT conduit interior coating to double protect the wire.

ANAKO can provide you with various EMT conduit sizes, allowing you to pick the suitable metallic tube to meet your size requirements.

Models available
CAT# Trade size Outside diameter Minimum wall thickness Standard weight Length
in. in. mm in. mm Ibs/ft kg/m ft.
ANK-50 1/2 0.706 17.93 0.042 1.07 0.285 0.424 10
ANK-75 3/4 0.922 23.42 0.049 1.25 0.435 0.647 10
ANK-100 1 1.163 29.54 0.057 1.45 0.640 0.952 10
ANK-125 1-1/4 1.510 38.35 0.065 1.65 0.950 1.414 10
ANK-150 1-1/2 1.740 44.20 0.065 1.65 1.10 1.637 10
ANK-200 2 2.197 55.80 0.065 1.65 1.40 2.083 10
ANK-250 2-1/2 2.875 73.0 0.072 1.83 2.32 3.450 10
ANK-300 3 3.500 88.9 0.072 1.83 2.80 4.164 10
ANK-350 3-1/2 4.000 101.6 0.083 2.11 3.37 5.013 10
ANK-400 4 4.500 114.3 0.083 2.11 3.78 5.623 10

Applicable Tolerances
Outside Diameter:±0.13mm(0.005in)
Length:±6.35mm(1/4in)

Note: Listed are common models, and other models can be customized.
Custom EMT Fittings for Electrical Industry

In addition to the products listed on this page, we also provide custom services for electrical conduits and fittings. Customers can choose different materials, such as steel, aluminum, zing, cold die cast, or hot die cast processes for their products. You can also choose different production standards and metal surface treatment methods according to your needs. If you want to buy stock products, or have custom conduit fitting needs, just let us know and we will quickly provide you with high-quality products.
