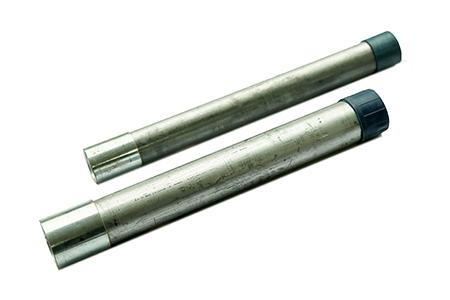

Intermediate Metal Conduit, IMC Conduit

IMC conduit can be connected with conduit or whorled connector to protect wires.

IMC conduit is produced by galvanized steel with great corrosion resistance, suitable for indoor and outdoor use.

Even for outdoor, wires arranged by ANAKO IMC conduit will not be influenced by the weather.

Models available
Size Outside Diameter Minimum Wall Thickness Length Without Coupling
Nominal Minimum Maximum
in. in. mm in. mm in. mm in. mm in. mm
1/2 0.815 20.7 0.810 20.6 0.820 20.8 0.070 1.78 9′-11-1/4" 3029
3/4 1.029 26.1 1.024 26.0 1.034 26.3 0.075 1.91 9′-11-1/4" 3029
1 1.290 32.8 1.285 32.6 1.295 32.9 0.085 2.16 9′-11 3022.6
1-1/4 1.638 41.6 1.630 41.4 1.645 41.8 0.085 2.16 9′-11 3022.6
1-1/2 1.883 47.8 1.875 47.6 1.890 48.0 0.090 2.29 9′-11 3022.6
2 2.360 59.9 2.352 59.7 2.367 60.1 0.095 2.41 9′-11 3022.6
2-/1/2 2.857 72.6 2.847 72.3 2.867 72.8 0.140 3.56 9′-10-1/2" 3099.9
3 3.476 88.3 3.466 88 3.486 88.5 0.140 3.56 9′-10-1/2" 3099.9
3-/1/2 3.971 100.9 3.961 100.6 3.981 101.1 0.140 3.56 9′-10-1/2" 3003.6
4 4.466 113.3 3.961 113.2 4.476 113.7 0.140 3.56 9′-10-1/2" 3003.6
Custom IMC Fittings for Electrical Industry

In addition to the products listed on this page, we also provide custom services for electrical conduits and fittings. Customers can choose different materials, such as steel, aluminum, zing, cold die cast, or hot die cast processes for their products. You can also choose different production standards and metal surface treatment methods according to your needs. If you want to buy stock products, or have custom conduit fitting needs, just let us know and we will quickly provide you with high-quality products.
