PVC Coated Flexible Electrical Conduit

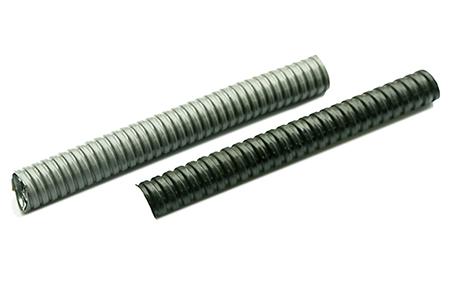

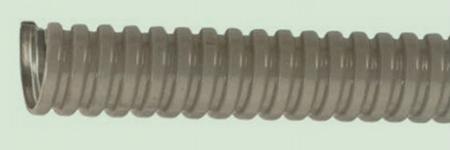

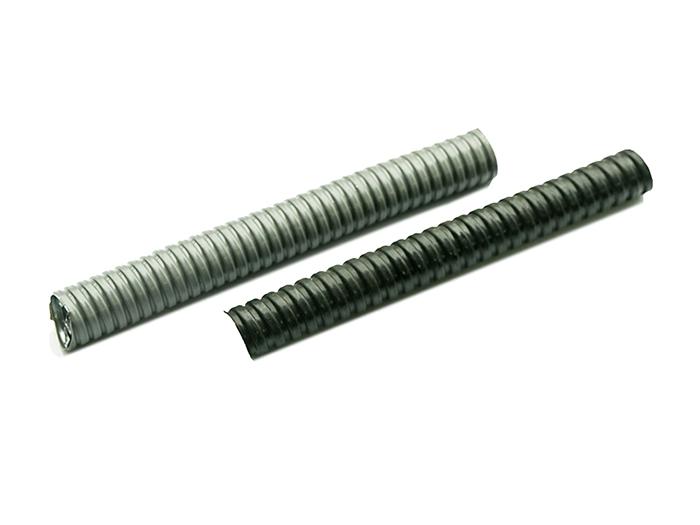

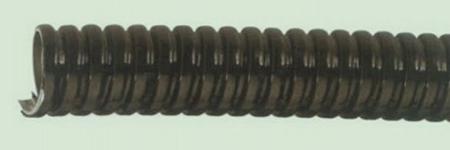

PVC coated flexible electrical conduits are a corrugated hose with an inner core made of galvanized steel, and features a high mechanical strength and durability. The outer surface is a thin PVC layer.
PVC is environmentally friendly, and is both waterproof and corrosion resistant, which is extremely important in protecting wires. This allows the electrical conduit to be used in outdoor environments. The electrical conduit can also be used in narrow spaces as a result of its flexibility.
Specification
| CAT# | Size | Inside Diameter(mm) | Outside Diameter (mm) | Outside Diameter (mm) | ||
| Min | Max | Min | Max | |||
| ANK-421 | 3/8" | 12.3 | 12.8 | 15.7 | 16.2 | 30,50,100 |
| ANK-422 | 1/2" | 15.8 | 16.3 | 13.2 | 19.7 | 30,50,100 |
| ANK-423 | 3/4" | 20.7 | 21.2 | 25.1 | 25.1 | 3O,50,100 |
| ANK-424 | 1" | 26.4 | 26.8 | 31.0 | 31.0 | 30,50 |
| ANK-425 | 1 1/4" | 24.7 | 35.4 | 40.3 | 40.3 | 15,25 |
| ANK-426 | 1 1/2" | 40.0 | 40.6 | 45.8 | 45.8 | 15,25 |
| ANK-427 | 2" | 51.3 | 21.9 | 57.1 | 57.1 | 15,25 |
| ANK-428 | 2-1/2" | 63.0 | 63.6 | 70.8 | 70.8 | 15 |
| ANK-429 | 3" | 78.0 | 78.7 | 58.9 | 85.9 | 10 |
| ANK-430 | 4" | 101.6 | 102.6 | 109.5 | 109.5 | 10 |
In addition to the products listed on this page, we also provide custom services for electrical conduits and fittings. Customers can choose different materials, such as steel, aluminum, zing, cold die cast, or hot die cast processes for their products. You can also choose different production standards and metal surface treatment methods according to your needs. If you want to buy stock products, or have custom conduit fitting needs, just let us know and we will quickly provide you with high-quality products.
