PVC Coated Flexible Electrical Conduit

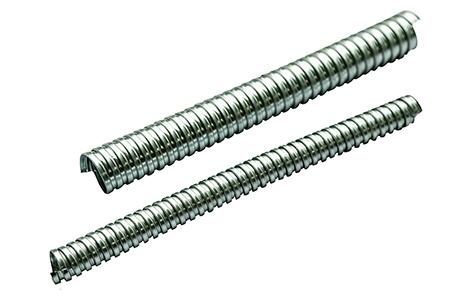

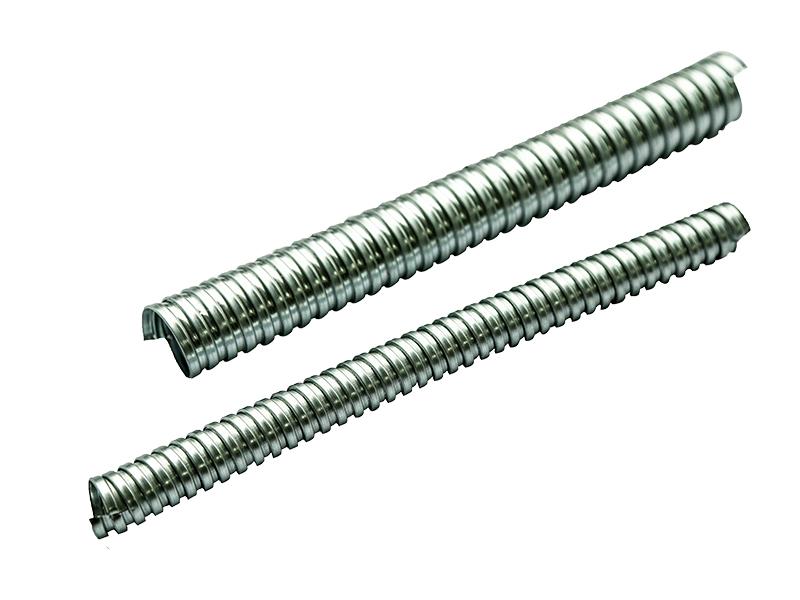

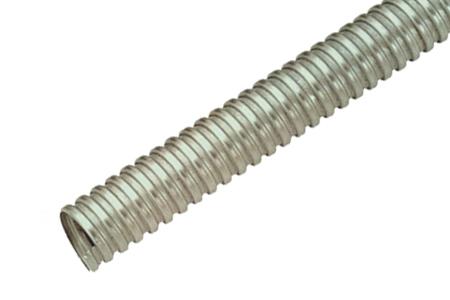

ANAKO's metallic conduit is made of galvanized steel, which features a high strength and excellent flexibility. This flexibility allows it to be used in narrow spaces to protect wires.
Because the electrical conduit is not waterproof, it can only be used indoors. We offer the flexible steel conduit in different specifications to meet different application needs.
Specification| CAT# | Size | Inside Diameter(mm) | Outside Diameter(mm) | Outside Diameter(mm) | ||
| Min | Max | Min | Max | |||
| ANK-411 | 3/8" | 12.3 | 12.8 | 15.7 | 16.2 | 30,50,100 |
| ANK-412 | 1/2" | 15.8 | 16.3 | 19.2 | 19.7 | 30,50,100 |
| ANK-413 | 3/4" | 20.7 | 21.2 | 25.1 | 25.1 | 30,50,100 |
| ANK-414 | 1" | 26.4 | 26.8 | 31.0 | 31.0 | 30,50 |
| ANK-415 | 1 1/4" | 24.7 | 35.4 | 40.3 | 40.3 | 15,25 |
| ANK-416 | 1 1/2" | 40.0 | 40.6 | 45.8 | 45.8 | 15,25 |
| ANK-417 | 2" | 51.3 | 21.9 | 57.1 | 57.1 | 15,25 |
| ANK-418 | 2-1/2" | 63.0 | 63.6 | 70.8 | 70.8 | 15 |
| ANK-419 | 3" | 78.0 | 78.7 | 58.9 | 85.9 | 10 |
| ANK-420 | 4" | 101.6 | 102.6 | 109.5 | 109.5 | 10 |
In addition to the products listed on this page, we also provide custom services for electrical conduits and fittings. Customers can choose different materials, such as steel, aluminum, zing, cold die cast, or hot die cast processes for their products. You can also choose different production standards and metal surface treatment methods according to your needs. If you want to buy stock products, or have custom conduit fitting needs, just let us know and we will quickly provide you with high-quality products.
