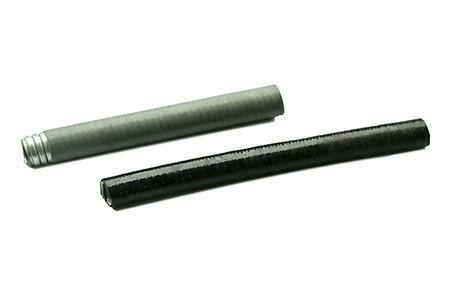

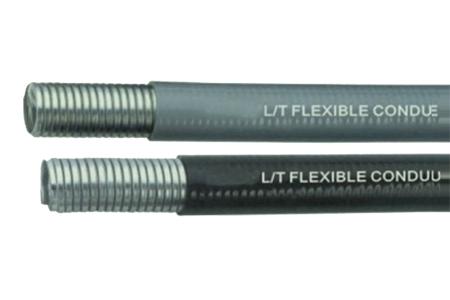

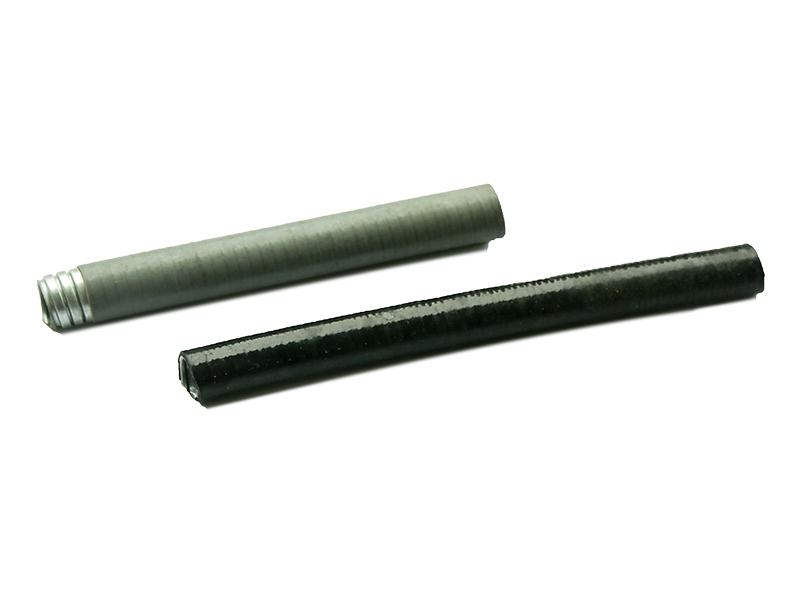

Liquid Tight Flexible Steel Conduit

The inner core of this steel conduit is made of corrosion-resistant galvanized steel, and the inner core is coated with a layer of PVC, giving it a better waterproof performance and a better wire protection. This liquid tight conduit is ideal for harsh environments.

In addition, the interior of this steel conduit is filled with a cord, which meets UL standards and ensures a worry free performance.

Specification
CAT# Size Inside Diameter(mm) Outside Diameter(mm) Min.BendRadius (mm) Reel length (Meter)
Min Max Min Max
ANK-431 3/8" 12.30 12.80 17.50 18.00 60 30,50,100
ANK-432 1/2" 15.80 16.30 20.80 21.30 80 30,50,100
ANK-433 3/4" 20.70 21.20 26.20 26.70 110 30,50,100
ANK-434 1" 26.20 26.80 32.70 33.40 150 30,50
ANK-435 1 1/4" 34.80 35.40 41.40 42.20 180 15,30
ANK-436 1 1/2" 40.10 40.60 47.40 48.30 200 15,30
ANK-437 2" 5.30 51.90 59.40 60.30 250 15,30
ANK-438 2-1/2" 63.00 63.60 72.10 73.00 300 7.5,15
ANK-439 3" 78.00 78.80 87.90 88.90 450 7.5
ANK-440 4" 101.60 102.60 113.20 114.30 600 7.5
Custom Conduit & Fittings for Electrical Industry

In addition to the products listed on this page, we also provide custom services for electrical conduits and fittings. Customers can choose different materials, such as steel, aluminum, zing, cold die cast, or hot die cast processes for their products. You can also choose different production standards and metal surface treatment methods according to your needs. If you want to buy stock products, or have custom conduit fitting needs, just let us know and we will quickly provide you with high-quality products.
